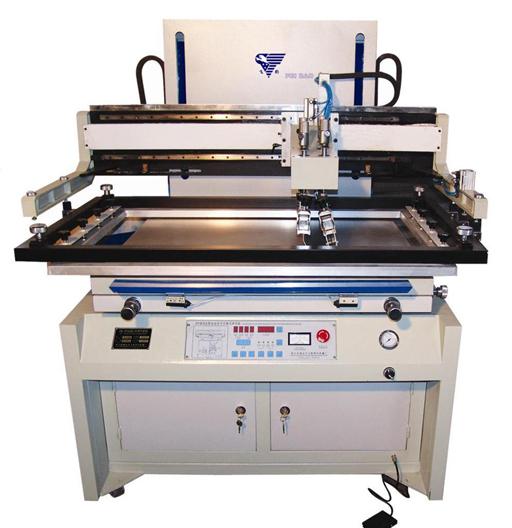

Ruian Feibao Screen Printing Machine Factory Шелкотрафаретные полуавтоматы, автоматы, широкоформатные ручные, UV-сушки, устройства экспонирования, устройства натяжения сита, устройства обработки материала коронным разрядом(активирование)... FB-780, FB-1020, FB-12080A, FB-12060A, FB-9060A, FB-8060A, FB-80120B, FB-60120B, FB-6090B, FB-6080B, FB-PY6090C, FB-PY6080C, FB-PY6090D, FB-PY6080D, FB-PY4060D, FB-600, FB-900, FB-120, FB-UV110-5000, FB-UV110-3500, FB-UV1300-3000, FB-UV1200-2500, FB-UV100-2500, FB-1518, FB-1315, FB-1112, FB-0910, FB-300, FB-70 Vertically Screen Printing Machine FB-600 (900, 1200) It used for printing various flat printed matters such as printing UV frosted or frost-flower wine box, cigarette case, cosmetics case, tea box, shirt box, the Chinese character of Happiness, decorative sticker, decorative sticker for daily and artistic porcelain to use, circuit board, undried glue, watermark and ultraviolet counterfeit-avoiding printed matters, decorative sticker for PVC, automobile, motorcycle, indoor and outdoor advertisement. CHARACTERISTIC :
1.Controlled by synchronous belt for printing, Korea-built linear guide to make printing process so smooth.
2.Screen plate movable vertically.Suitable for printing superior material, such as colorful paper for ceramic, circuit board, etc.
 Specifi600×850mmcations and Model | FB600 Model | FB900 Model | FB1200 Model | Max. printing dimensions | 400×600mm | 600×900mm | 600×1200mm | Max. dimensions of the frame(outside) | 800×600mm | 1000×800mm | 1500×800mm | Min. dimensions of the frame(outside) | 400×500mm | 500×600mm | 500×600mm | Voltage power | Ac220V 50HZ 800w | Ac220V 50HZ 800w | Ac220V 50HZ 800w | Net weight of the machine | 230kg | 280kg | 380kg | Air compressor | 4.5-6kgp/cm2 | 4.5-6kgp/cm2 | 4.5-6kgp/cm2 | Outside overall dimensions | 1250×880×1700mm | 1250×880×1700mm | 1750×880×1700mm |

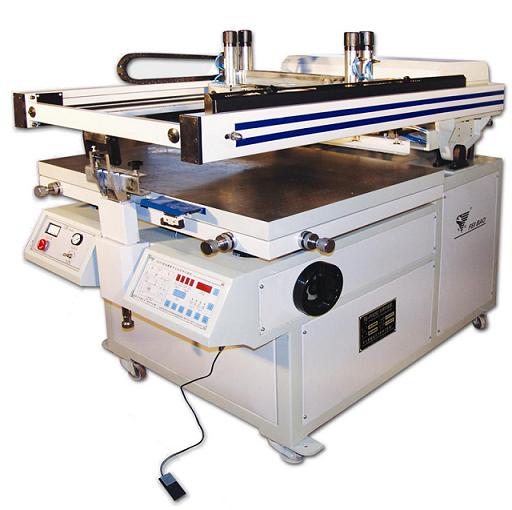

FB-12080A(12060A, 9060A, 8060A) High-precision Screen Printing Machine
Max.printing dimensions | 800×600mm | 800×1200mm | Max.dimensions of the frame (outside) | 1100×1000mm | 1200×1600mm | Min.dimensions of the frame(outside) | 600×550mm | 600×550mm | Max.printing speed | 1200pcs/h | 1200pcs/h | Height of instant off-network | 0-25mm | 0-25mm | Use level of compressed air | 12L/min | 12L/min | Skewness of the scraper | 0-30° | 0-30° | Standard height of the workbench | 900±25mm | 900±25mm | Air pressure | 0.4-0.6mpa | 0.4-0.6mpa | Weight | About 550kg | About 550kg | Dimensions of workbench | 900×800mm | 1000×1300mm | Printing thickness | 0-50mm | 0-50mm | Voltage machine | AC 380V 50HZ 3.5kw | AC 380V 50HZ 3.5kw | Outside overall dimensions | 900×1500×1265mm | 900×1500×1265mm |

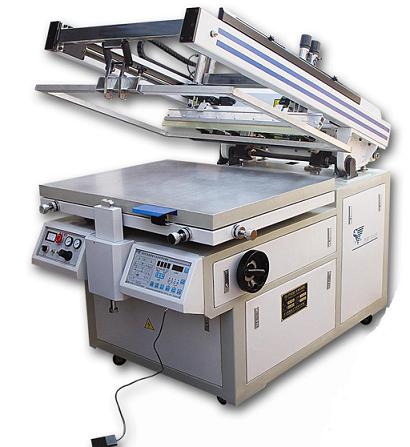

Semiautomatic High-Precision Screen Printing Machine FB-80120B(60120B, 6090B, 6080B) Specification
It's same with A model. But the material of expandable arm is different. The material of B model is aluminum. A model is iron.
-------------------------------------------------- It is suitable for material of not easily deform to make flat net printing of membrane, card, sheet panel etc, such as dull polish for packaging box, frost flower wrinkle convex oil etc packaging, and various china decal flower, undried paper, decorative sticker for automobile and motorcars, bicycles etc. FEATURES: 1.Set manual and automatic state, digital control for semi-automatic printing every time. (1-9 seconds) 2.Dynamic system is adopted with motor drive, frequency governor, balance and stability, adjustable pressure for printing, guarantee the printing quality. 3.Unique stainless steel printing platform, homogenous and deliberate hole, full automatic control, vacuum cleaner device to guarantee printing stable during printing, make multiple color offset accurate effectively. 4.There are horizontal directional and vertical directional micro-adjustment device on the printing platform, ease and precision of offset. 5.Equipped with high-net device, scraper and ilk blade can be exchange automatically, the distance and angle can be adjusted freely, 6.Dynamic printing system is adopted with motor drive, frequency governor with stability. 7.Equipped with safeguard emergency brake device, it can make necessary emergent brake when screen declined.

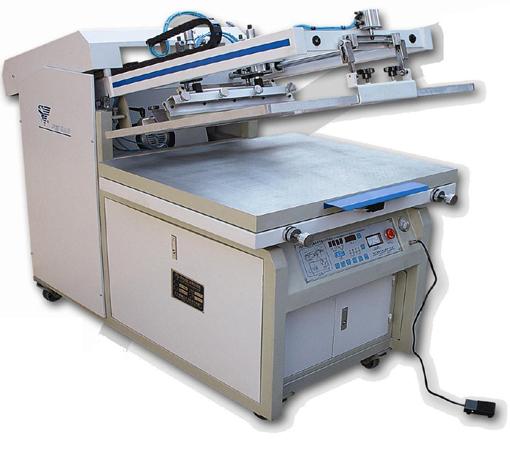

MicroComputer Screen Printing Machine FB-PY 4060D, 6080D, 6090D
Model | FB-PY4060D | FB-PY6080D | FB-PY6090D | Max.printing acreage | 400×600mm | 600×800mm | 600×900mm | Print station acreage | 600×700mm | 800×900mm | 800×1000mm | Voltage | 380V/50Hz | 380V/50Hz | 380V/50Hz | Printing speed | 1300t/h | 1200t/h | 1200t/h | Dimensions of machine | 1500×800×1250mm | 1800×1100×1300mm | 1800×1200×1300mm |

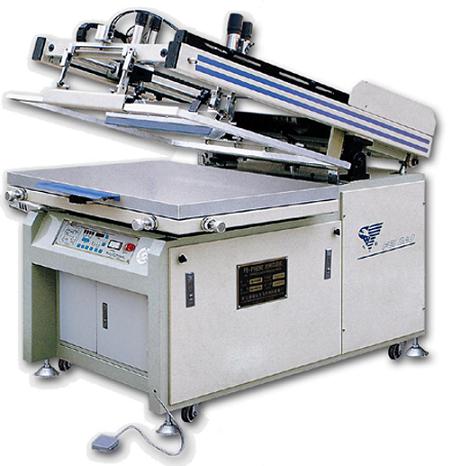

Microcomputer Screen Printing Machine FB-PY6090C, 6080C FEATURES：
1.Four poles style rise-fall bedplate, easy and precise adjustment.
2.The printing effect is very excellent by using four air cylinders.

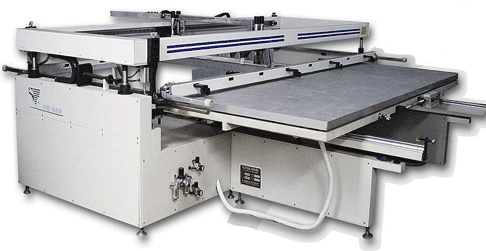

FB-2800(4000) FB Series Large-sized Manual Screen Printing Machine It have been widely used for printing UV frosted or frost-flower wine box, cigarette case, cosmetics case, tea box, shirt box, the Chinese character of Happiness, decal Paper, decal paper for daily and artistic porcelain use, circuit Board, undried glue label, watermark and Ultraviolet counterfeit-avoiding printed matters, decal paper for PVC, automobile, motorcycle, indoor and outdoor advertisement and various of planar printed matters. CHARACTERISTICA:
This machine with large print area, vertical-type screen frame, double-track type printing parts and guideway in-and-out type working table, the machine can save labour and ensure that's planeness.The latest designed working table positioning system can obviously improve printing accuracy.
Specifications and Model | FB-2800 | FB-4000 | Max.printing dimensions | 1300×2800mm | 1800×4000mm | Max.dimensions of the frame(outside) | 1700×3200mm | 2200×4400mm | Printing Thickess | 1500×3000mm | 2000×4500mm | Printing Thikness | 0-50mm | 0-50mm | Overall Dimesions(L×W×H) | 3500×2000×1300mm | 5320×3575×1350mm | Power Supply | 3N-380V 50Hz | 3N-380V 50Hz | Pressure of Gas Source | 0.4-0.6MPa | 0.4-0.6MPa | Weight | About 1000kg | About 1000kg |

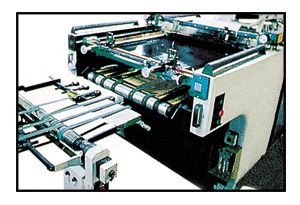

FB-780(1020)
Model FB-780
| Model FB-1020 | Max.Sheet format (mm):780x540
Min.Sheet format (mm):390x300
Max.Printing area (mm):780x520
Border (mm):20
Stock thickness range (g/m2):157-350
Printing plate dimension (mm):880x880
Sheet output max.(s/h):3600
Weight (kg):3500
Dimension (lxwxh):1920x1470x1280
Power (kw):8.2 | Max.Sheet format (mm):1020x650
Min.Sheet format (mm):540x410
Max.Printing area (mm):1020x600
Border (mm):20
Stock thickness range (g/m2):157-350
Printing plate dimension (mm):1000x1200
Sheet output max.(s/h):3600
Weight (kg):4100
Dimension (lxwxh):1920x1680x1300
Power (kw):8.2 |

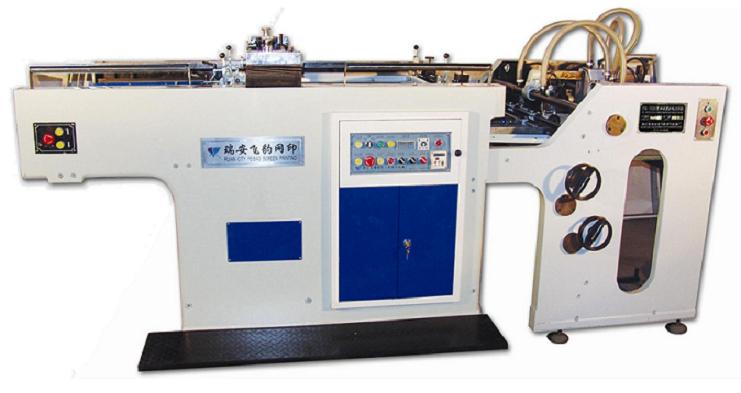

FB780/1020 auto cylinder screen printing press is a kind of full automatic flat screen printing press with high speed and high precision, It have a reasonable structure, steady and high speed.We can assure the accurate of overprint.The machine is equipped with automatic printing with discrete sheet feeding and continuous feeding, and it's fargoing.It is suitable for soft and half-soft mixmaterials of 157-350g/m2 Frequency control of motor speed is monitored and controlled automatically, PLC programmable controller controls the whole machine's running.It adopt to centralized control, easy operation and high sensitivity, It reaches an advanced level in domestic compare with similar machine.Only one person is needed to operate the printing press. This machine can printing all kinds of print, especially colors of golden and credit card, lottery card and so on.The print is full oil, fresh color and stereoscopic, make the printing quality better than others. Otherwise, custoners can equip the machine with dryer, UV photofixation machine, paper collection machine into an full automatic screen printing press production line.
FB- Ultraviolet Photo-fixation Machine Vacuum Exposure Machine (FB-1518 1315 1112 0910) Horizontal Type Drying Container (FB-1112) Pneumatic Stretching Machine (FB-300) Electronic Impacter FB-780
Карусельные станки для печати по тканям. | MODEL | MAX. PRINTING AREA（mm） | | WPKY-4/6 multi-color automatic rotating screen printing machine | 450×600（4colors/6stations） | | WPKY-4/10 multi-color automatic rotating screen printing machine | 450×600（4colors/10stations） | | WPKY-5/7 multi-color automatic rotating screen printing machine | 450×600（5colors/7stations） | | WPKY-5/12 multi-color automatic rotating screen printing machine | 450×600（5colors/12stations） | | WPKY-6/8 multi-color automatic rotating screen printing machine | 450×600（6colors/8stations） | | WPKY-6/14 multi-color automatic rotating screen printing machine | 450×600（6colors/14stations） | | WPKY-8/10 multi-color automatic rotating screen printing machine | 450×600（8colors/10stations） | | WPKY-8/18 multi-color automatic rotating screen printing machine | 450×600（8colors/18stations） | | WPKY-10/12 multi-color automatic rotating screen printing machine | 450×600（10colors/12stations） | | WPKY-12/18 multi-color automatic rotating screen printing machine | 450×600（12colors/18stations） | | WPY-6/8 rotating multi-color printing machine | 400×500（6colors/8stations） | | WPY-6/14rotating multi-color printing machine | 400×500（6colors/14stations） | | WPY-8/10 rotating multi-color printing machine | 400×500（8colors/10stations） | | WPY-8/18 rotating multi-color printing machine | 400×500（8colors/18stations） | | WPY-10/12 rotating multi-color printing machine | 400×500（10colors/12stations） | | IRH-1000 DRIER | Length:6m, Width:1m | | Flash Cure | |
Спецификацию станков и доп. оборудования высылаем по запросу.
|
